Magnetic Mitre Clamps, pull 150 lb - 220 lb

Artikel ID
1352
content
1 piece
Size
105,52£

incl. 19 % VAT plus delivery costs


Sie haben noch keine Variante gewählt.

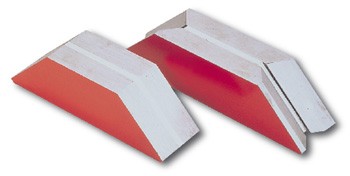

Magnetic Miter Clamps



Simple, inexpensive method of clamping flat and round components at angles of 45 and 90 degrees. Powerful Alcomax magnet material provide maxium pull of 100kg and 68kg Plain ended clamps (923) for plates. 'v' shaped clamps for bars and tubes up to 57 mm.



Technical Information:

  • Simple and inexpensive method of clamping components
  • Contains powerful Alcomax magnetic material
  • Clamps do not switch off, but can be levered away without undue difficulty
  • Plain ended clamps for clamping plates
  • Vee’d clamps for bars and tubes up to 57mm diameter
  • 150 pounds pull capacity



Uses and Applications:

  • The Mitre Clamps provide the welder with a simple and inexpensive means of clamping flat or round ferrous components

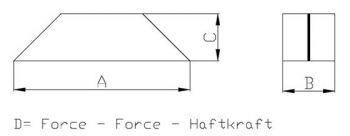

Product Range:



Product Weight
(kg)
Length
(mm)
Width
(mm)
Height
(mm)

Magno - 156 1.36 156-66 43 45
Magno - 184 1.64 184-94 43 45




Item: Magno - 156, Magnetic Miter Clamps

Simple, inexpensive means of clamping flat or round ferrous components at 45 and 90 degrees. Clamp measures 5.98 in Length base face x 2.75 in Length top face x 1.75 H x 1.61 W and pulls 220 lbs and weighs 3.6 lbs.















  Manufactured after 2013/01/01, The object of the declaration described above is in conformity with DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL an the restriction of the use of certain hazardous substances in electrical and electronic equipment.

  • Magnetic Miter Clamps, pull 150 lb - 220 lb
  • Application: 45 and 90°
  • Dimension: 5.98 in Length base face x 2.75 in Length top face x 1.75 H x 1.61 W
  • Tool Body Material:  Metal
  • Clamping Force: 200 lbs
  • Weighs: 3.6 lbs.



Item Number:

1352

Packing quantity:

1 Magnetic Miter Clamps 45 and 90°

Tool Body Material:

Metal

Color:

red

Weight (kg):

3.6 lbs.

Securing

magnetic tool holding
