Rubber Coated Magnets Neodymium Mounting Magnets
These Rubber Coated Neodymium Magnets are high strength rare earth magnets with a durable Santoprene rubber coating to protect sensitive surfaces like glass and plastics, or any highly finished vehicular surfaces. They are often used for holding, gripping or clamping functions. Rubber coated mounting magnets sometimes feature a central threaded hole so that you can attach them with a bolt. Alternatively you can insert a hook or eye bolt.
Rubber Coated Magnets / Neodymium Pot Magnets
Rubber coating of pot magnets is considered useful when using sensitive surfaces like glass and plastics, or highly finished vehicular surfaces. Rubber coating is also useful to prevent corrosion in marine, aquatic or external environments, as well as in areas where metal strike presents a risk to the magnet. Metal strike situations are more likely in mechanical environments related to motors and machinery. Rubber coated pot magnets are often placed to create a fixing or hanging point. The rubber coating provides for superior slide resistance due to greater friction between the rubber and steel surface to which the magnet is bonded. Manufacturers and industrial designers use rubber coated pot magnets for holding and fastening. Products and devices held together with rubber coated pots allow you to easily uncouple the magnet at pre-determined pressure points for regular cleaning or servicing.
This characteristic increases the durability and ease of use. Used as connective tissue in plastic clad fabrications, rubber coated pot magnets do not typically puncture or penetrate plastic material, helping to maintain the monolithic nature and integrity of these fast evolving resinous forms.
The multiple pole design of these rubber coated Neodymium (NdFeB) pot magnets ensures a dense shallow magnetic field on the holding surface. This allows for excellent holding onto thin, lacquered car body metal. The sideways displacement (sheer forces) are extremely good due to the suction effect of the rubber surface. Maximum recommended operating temperature is 60 degrees Celsius. These rubber coated Neodymium (NdFeB) pot magnets are especially suitable for magnetically fixing objects such as advertising displays or safety blinkers onto car roofs (the metal work must have a mild steel content – aluminium or carbon fibre surfaces will not work).
The rubber coated Neodymium (NdFeB) pot magnets are also suitable for fixing signs, plates, temporary lightings and sample parts scratch-free onto highly polished chrome-plated or painted mild steel (ferrous) surfaces. The rubber coating also provide a good level of corrosion protection in humid conditions. Because of their high performance, slide resisting properties and paint work protection ability, these rubber coated Neodymium (NdFeB) pot magnets are sometimes also known as Boutique Magnets.
We are a manufacturer and supplier of Rubber Coated Magnets in standard and custom sizes. Our Rubber Coated Magnets are produced in top quality and our prices are competitive. We are a supplier of OEM and Industry.
Main product details:
A rubber coated Neodymium pot magnet that ensures a dense shallow magnetic field on the holding surface. This allows for excellent holding onto thin, lacquered car body metal. The sideways displacement (sheer forces) are extremely good due to the suction effect of the rubber surface. Ideal magnets for fixing signs, plates, temporary lightings and sample parts scratch-free onto highly polished chrome-plated or painted mild steel (ferrous) surfaces.
- Santoprene Rubber coating for scratch-free clamping
- Neodymium Magnets (NdFeB) inside for maximum holding forces
- Extremely good sheer forces - high resistance to sliding
- Protects surfaces such as lacquered mild steel car body work
- Maximum recommended operating temperature is 60°C
Rubber coated magnetic systems available at Magnosphere

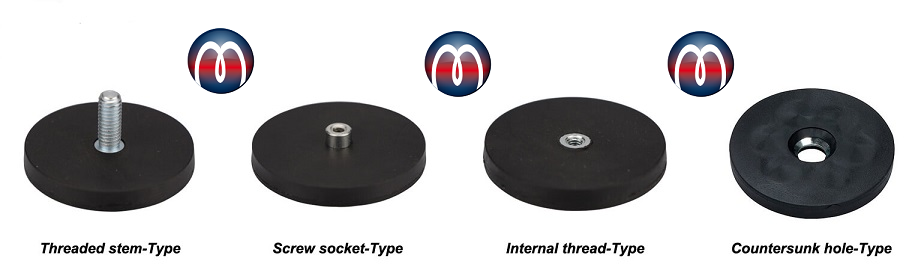

- Magnet assembly, NdFeB, rubber coat, with screwed bush
- Magnet assembly, NdFeB, rubber coat, with external thread
- Magnet assembly, NdFeB, plastic coat, rubberized holding surface
- Magnet assembly, NdFeB, rubber coat, with cylinder bore
- Magnet assembly, NdFeB, rubber coat, with bore and counter bore
- Magnet assembly, NdFeB, rubber coat, with internal thread
- Magnet assembly, NdFeB, rubber coat, with internal thread, rectangular
- Magnet assembly, hard ferrite or NdFeB, rubber coat, black, rectangular
- Magnet assembly made of NdFeB, rubber coat, black, with handle
- Magnet assembly, NdFeB, rubber coat, for cable mounting
- Magnet assembly, hard ferrite or NdFeB, rubber coat, black, with bore and counterbore
- Custom-made Rubber coated systems
- Other sizes, shapes and grades may be available by special request.
Magnetic systems with rubber or plastic jacket coat
Rubber Coated magnetic systems with neodymium magnets for demanding tasks. The rubber-coated adhesive surface protects the metal from scratches and grounds for detention increases the pushing force. The neodymium magnets are arranged alternately pole and thus increase the adhesive force. As material for the rubber sheath Santoprene was used. They can be mounted with different exposures (threaded stud, threaded socket, female threaded, hole or depression).
